| ■ Specifcation |
100g/m 2 ~800g/m 2
| ■ Features |
High strength, anti-aging, acid and basic resistance, abrasion resistance, flexibility, and easy for construction.
| ■ Usage |
Filament spunbond needle punched geotextile used in the area of highway, railway, dam, coastal beach for reinforcement, filtration, separation and drainage, especially used in salt marshes and garbage burying field.
| ■ Size of Package |
Width4-6m, length50-100m(or at request)
| ■ Products Technical Parameter |
| NO. | Item/Value | Specification | ||||||||||
| 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | ||
| 1 | Weight Variation % | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 |
| 2 | Thickness mm≥ | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 |
| 3 | Width Variation % | -0.5 | ||||||||||
| 4 | Breaking Strength KN/m≥ | 4.5 | 7.5 | 10.5 | 12.5 | 15 | 17.5 | 2.5 | 22.5 | 25 | 3. | 40 |
| 5 | Elongation at Break % | 40-80 | ||||||||||
| 6 | CBR Mullen Burst Strength KN≥ | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3 | 3.5 | 4 | 4.4 | 5.5 | 7 |
| 7 | Sieve Size O90(95) mm | 0.07-0.2 | ||||||||||
| 8 | Vertical Permeability Coefficient cm/s | (1.0-9.9)×(10-1~10-3) | ||||||||||
| 9 | Tear Strength KN≥100 | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.7 | 0.82 | 1.1 |

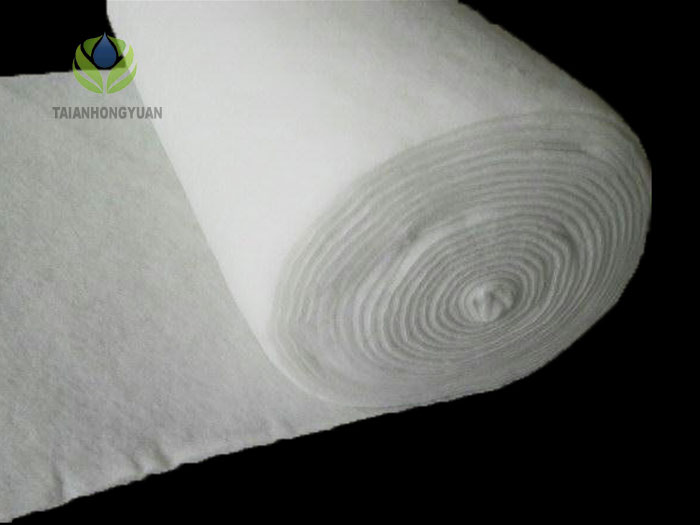

Filament spunbond needle punched geotextile
Filament spunbond needle punched geotextile 2020-4-22 This article is read 7914 Times
